Counter

Counter increments an unsigned binary value from 0 to N

Consider a T flip-flop with hardwired input of 1:

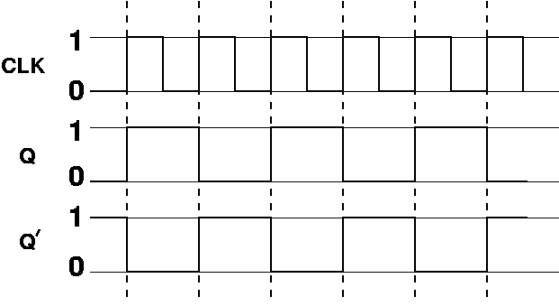

The behavior can be represented by a timing diagram:

Value of Q toggles at each positive clock edge.

Notice that if the clock period is t, the period of the output Q

is exactly double the clock period, or 2t.
