| Counter | ||||||||||||||||||

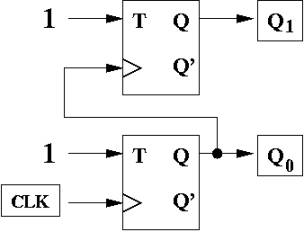

| Now use the output of the first flip-flop as the clock input of another T flip-flop: | ||||||||||||||||||
|
||||||||||||||||||
| What will be the period of the second flip-flop output Q1? | ||||||||||||||||||
| If we keep repeating this N times, the period of the Nth output will be 2Nt | ||||||||||||||||||
| How does this help build a counter? | ||||||||||||||||||
