Finite state machines | |||||||||||||||

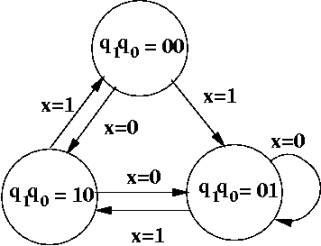

Example: | Start state | ||||||||||||||
![]() |
|||||||||||||||
States: represented by circles, 2-bit values q1q0 | |||||||||||||||
N states require ceil(lg N) bits to represent (the ceiling of log base 2 of N) | |||||||||||||||
Inputs: represented by arrows labeled x (number of bits depends on number of transitions) | |||||||||||||||
2k arrows for k bits of input | |||||||||||||||
Trace: | State | 00 (Start) | 01 | 10 | 01 | 01 | 10 | ||||||||
Input | 1 | 1 | 0 | 0 | 1 | ||||||||||
