Datapath: critical path

Why don't we use single-cylcle datapath? Too slow!

Clock cycle time must be as long as the longest path: load instruction

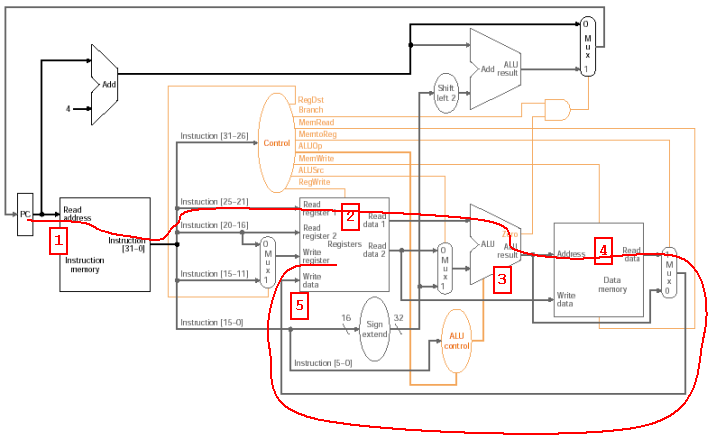

Fig. 5.21

5 functional units: PC, instruction memory, register file, ALU, data memory, plus 2 MUXes
