Tic-Tac-Toe Virtuoso

"The Only Winning Move is Not to Play"

Objective

Overview

Our project will involve two phases and then an optional "extra credit phase":

1. Write a class called BoardState that represents the state of the board at a particular moment during the game. Please note that we are not assuming the board is 3 by 3. Our board could be 2 by 2 or any larger (square) size.
2. Write a class called CompleteStateGraph that literally contains the entire state graph for every possible game. This will be a directed graph. Each node in the graph will contain a board-state and a vector of pointers to other nodes. Important: Our graph will never contain two nodes with the same BoardState!

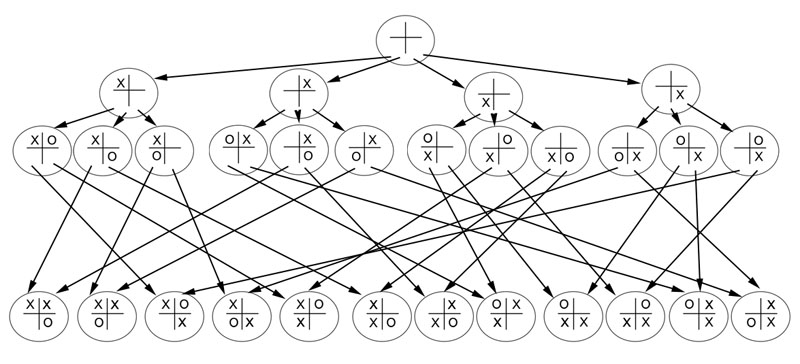

   Below is a diagram of the CompleteStateGraph for all possible games played on a 2 by 2 board:



3. OPTIONAL EXTRA CREDIT: Write a class called PrunedStateGraph that represents the state graph but without any paths that result in a win for player 'X'. Note that for the 2 by 2 game, this results in an empty graph, since every possible game results in a win for player 'X'! However on a larger board there are many scenarios where 'X' does not win, and so we will construct a graph that depicts all of them.

Getting the Project Files

Part I: BoardState Class

We have included a header file (BoardState.h) that is mostly filled in. What you need to do is to fill in the private data members that you will use to store the state of a board. You are free to store your data any way you choose, but you are only allowed to use primitives or pointers (or pointers to pointers). The Board should keep track of where the X's and O's are, and should also keep track of whose turn it is. That's all.

After deciding how you will store the data for the BoardState, you will write the implementation file, BoardState.cpp

Restrictions on the BoardState class:

1. You may not #include anything anywhere, other than #including BoardState.h in BoardState.cpp. This rule applies to both BoardState.h and BoardState.cpp. Absolutely no #includes other than #include BoardState.h
2. You may only use primitive types or pointers (or pointers to pointers) in the implementation of the class. Arrays are fine, but no strings, no vectors, no maps, nothing like that at all.
3. You may not add any public members to the class, and you may not modify any of the function declarations that are already there.

• BoardState(unsigned int) -- Initialize an empty board of the given size. For example, if the parameter is 3, then you must construct an empty 3 by 3 board. You may assume that the size parameter will always be at least 2. The BoardState also keeps track of whose turn it is. Player 'X' always goes first, so have the BoardState remember that player 'X' has the next move.
• BoardState(BoardState const &) -- Copy constructor. Be sure to make a deep copy. Don't forget to copy the board and also the variable that is keeping track of whose turn it is.
• BoardState & operator=(BoardState const &) -- Overload the assignment operator following the example from class. Be sure to do the "self-assignment" check, and don't forget that you must first de-allocate the current data before copying over the new data.
• bool operator==(BoardState const &) const -- To be considered equal, two Boardstates must be the same size, and have X's and O's in all the same locations, and it should be the same player who is about to move. (Whose move is next is not implicit in the symbols on the board -- the boardstate does not have to be consistent with the rules of tic-tac-toe.)
• bool operator<(BoardState const &) const -- It is very important that this function is written correctly! Several of the release tests will use your BoardState objects as keys for maps -- of course maps only work for keys with a proper operator< function. I don't care how you define it, but you must ensure that:

  1. For every pair of distinct BoardStates, x and y:   Either x < y or y < x and not both!
  2. Also it must be transitive: If x < y and y < z then x < z.
  3. Finally, no BoardState can be considered less than itself.
  I suggest using a "lexicographical" ordering (like alphabetical order) where you pretend each board is like a string. Let's use a hyphen ('-') to represent an empty location. So, abstractly we can imagine that an empty 2 by 2 board is like the string "----". A 2 by 2 board with X's on the top row and O's on the bottom row could be considered "XXOO", while a 2 by 2 board that has X's everywhere except the bottom-left corner, which is blank would be "XX-X". Please note that since we are not assuming the placement of X's and O's are in any way connected to "whose turn it is", we should also concatenate to the string an extra symbol representing the player whose turn is next.
  Although you are not allowed to use the string class for this portion of the project, you can easily write code that views each board as a sequence of characters and compares them lexicographically (in alphabetical order). That would be a good implementation of operator<. Do it however you want, just be sure to satisfy the three conditions listed above.
• bool isFullBoard() const -- Returns true if all of the locations on the board contain either an X or an O; returns false if there is at least one unused location.
• bool hasWon(char) const -- The parameter will either be 'X' or 'O'. Checks to see whether or not the specified player has won the game. To win the game, there must be a row, column, or diagonal that is comprised entirely of the specified character. (e.g. On a 4 by 4 board, there have to be four of the specified character in a row, either horizontally, vertically, or diagonally.) The function returns true if the specified player has won, false otherwise.
• void set(int row, int col, char) -- The third argument will either be 'X' or 'O'. Places the specified character at the specified location on the board. You may assume that the row and column are in the proper range. IMPORTANT: Do not toggle whose turn it is when this function is called. The BoardState does not know that a game is being played, so there is no connection between the symbols on the board and whose turn is next.
• char get(int row, int col) const -- Returns one of three things: 'X', 'O', or a hyphen ('-') depending on whether the specified location contains an 'X', an 'O', or nothing.
• char getWhoseTurn() const -- Returns either 'X' or 'O', depending on who is about to move. The basic constructor should set it so 'X' goes first. The player whose turn it is will only be changed when the framework calls the "toggleTurn" function, detailed below.
• void toggleTurn() -- If it is X's turn, changes it to O's turn and vice versa.
• unsigned int getSize() const -- Returns the size of the board. (E.g. for a 3 by 3 board, would return 3.)
• ~BoardState() -- Destructor. You know what to do! Free up any memory that this BoardState allocated.

Part II: CompleteStateGraph Class

We have provided the header file CompleteStateGraph.h. Do not modify it in any way! Your job will be to write the implementation file, CompleteStateGraph.cpp.

Before you get started on the Graph, you should know that we already wrote a Node class for you! Please take a look at the files Node.h and Node.cpp. They are finished -- don't change them.

A Node consists of a BoardState together with a vector of pointers to other Nodes. Sounds like a directed graph, doesn't it!? Look at the picture above that shows the CompleteStateGraph for size 2 by 2. Each of the ellipses represents a Node.

Note that the CompleteStateGraph has a the following private member:

Node const *start;

As you might guess, this will be a pointer to the Node that holds the empty board representing the beginning of the game.

Here are the specifications for the functions you must write in the CompleteStateGraph class:

• CompleteStateGraph(int) -- Constructs the complete state graph of the game tic-tac-toe for the given board size. For example, if the parameter is 2, it should construct the graph that appears above, and set the variable "start" so that it points to the Node at the top. Note that the terminal nodes (the ones who don't point to anyone else) must represent the end of a game. IMPORTANT: The game ends when either player has won, or if the board has become full. A 2 by 2 game ends quickly because 'X' always wins on his second move. A 3 by 3 game can go on for 9 moves. A 4 by 4 game can go on for 16 moves, etc.

  Writing this constructor is the difficult part of the project. You must instantiate all of the nodes, each containing the proper BoardState, and with a vector of pointers that point to the correct successor nodes.

  Right away you will notice that all of the Nodes in the Graph have to be const. This will annoy you. It is annoying because the constructor for a Node needs you to pass in a vector of pointers that point to all of it's successors. Since you can't mutate a Node, that means that you have to actually construct the successor Nodes before you construct the current Node. You will need to give this some thought and you will certainly want to do this recursively.

  The other difficulty is that you are not allowed to have more than one Node with any particular BoardState. Notice in the diagram above that each Node has a different BoardState. (If we had allowed multiple nodes with the same BoardState, then the structure would have been a Tree, which would have wasted an enormous amount of memory, but the project would have been a heck of a lot easier!)

  Before you jump in and attempt to write this constructor, give it some thought.

• CompleteStateGraph(CompleteStateGraph const &) -- Copy constructor. Be sure that your copy is a deep copy. Here's a big hint: For a given size, there is only ONE CompleteStateGraph diagram. So... my copy constructor merely builds (from scratch) another CompleteStateGraph of the same size as the one I'm copying! Cheating? Maybe! But it builds an exact deep copy of the parameter, so it works perfectly. You're free to make the copy any way you choose.
• Node const * getStart() const -- Don't hurt your brain on this one, just type: "return start;" and move on to the next function.
• CompleteStateGraph & operator=(CompleteStateGraph const &) -- As always, the assignment operator must de-allocate all of the memory being used by the current object, and then re-initialize it to be a copy of the parameter. The hint I gave for the copy constructor could also apply to the copy phase of this one!
• ~CompleteStateGraph() -- Destructor. Be sure to wipe out all of the memory that was allocated for the current graph. It is not at all obvious how to do this without calling delete more than once on the same node (which will crash horribly!) Give it some thought.

EFFICIENCY REQUIREMENT
Your implementation must be reasonably efficient. If you are traversing every possible scenario over and over again, then your code will run too slowly and we will not be able to test it. If your code times out during any of the release tests, you will receive 0 points for the test.

Part III: OPTIONAL EXTRA CREDIT: PrunedStateGraph Class

The interesting thing about tic-tac-toe is that constructing this pruned graph will not eliminate any of the choices that player 'X' has at any juncture! That means that tic-tac-toe is a game that player 'O' cannot lose. We use this fact together with your completed PrunedStateGraph to run a little program (driver2) that plays a flawless game of tic-tac-toe. You get to be player 'X' (so you go first) and the computer will be player 'O'. The computer will always choose moves that are on the PrunedStateGraph, so it cannot lose, no matter what moves you choose! Try out driver2 and I'm sure you'll be captivated for hours as your computer humbles you with it's flawless play.

Using the Makefile (Provided)

To run one of the public tests, type either "make pub1", "make pub2", or "make pub3".

I also wrote two small programs that might be useful in testing/debugging your code:

1. Type "make driver1" to run a program that uses your ComleteStateGraph class. It will play games of tic-tac-toe where each move is selected randomly from the possible moves at that juncture, based on your graph.
2. Type "make driver2" to run a program that uses your PrunedStateGraph class (which only makes sense if you have implemented the optional extra credit part.) It will let you play against the computer. You get to go first, so you are player 'X'. Since the computer's moves will be selected from the pruned version of the graph, the computer cannot lose! It's really very frustrating.

Submitting

• To submit the assignment, make sure you are inside the project directory and then type:

  java -jar submit.jar
  (Of course you might have to type "tap -q java" first, just like always.)

  The first time you submit it will ask you to authenticate -- use your University of Maryland directory ID and password.
• After you've submitted, go to the Winter submit server to see your submission. You'll need to spend a token to see how you did on the release tests.


Grading

Public tests:

• pub1:     25 points
• pub2:     15 points
• pub3:     10 points

• 4 release tests for the CompletedStateGraph:     50 points total
• 2 release tests that are considered EXTRA CREDIT. These will test your PrunedStateGraph:     15 points total
