Registers: T flip-flops |
|
|
|
|
|
|
|

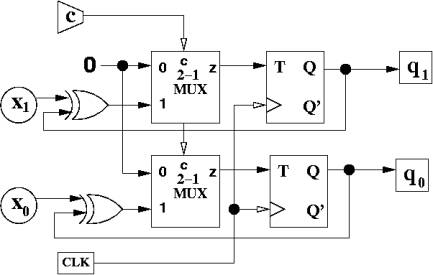

Register with T
flip-flops: for simplicity, implement with 2 flip-flops |
|
|
How does T flip-flop hold
the value? |
|
|
|
|
T = 0 |
|
|
|
|
|
|
|
How does it load? |
|
|
|
|
|
T = 1
toggles |
|
|
|
|
|
|
If (x
!= Q), then toggle |
|
|
|
|
|
|
|
MUX input 1: |
|
|
|
|
|
|
|
T = x XOR Q |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
What other operations
could we do? |
|
|
|
|
|
|
|
Shift is simply another
form of load! |
|
|
|
|
|
|
|
Input is from current
state, rather than external |
|
|
|
|
|
Shift left: load bit i
with value of bit (i-1) |
|
|
|
|
|
|
Shift right: load bit i
with value of bit (i+1) |
|
|
|
|
|
Can add more control
bits to select shift operations as well as regular load |
|
|
|
Change MUX to 4-1: |
|
|
|
|
|
|
control |
|
operation |
|
|
|
|
|
|
|
00 |
|
hold |
|
|
|
|
|
01 |
|
parallel load |
|
|
|
|
10 |
|
shift left logical 1 bit |
|
|
|
|
|
11 |
|
shift right logical 1 bit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
