What is an integration tree ?

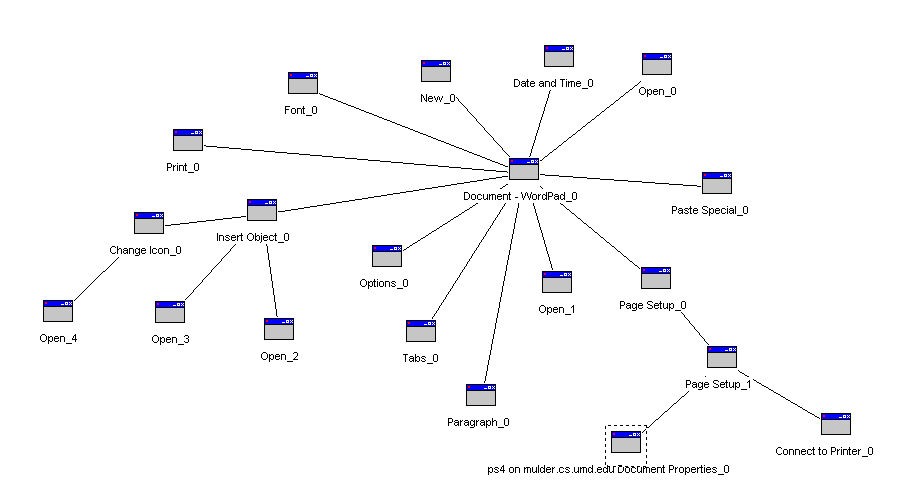

An INTEGRATION shows how GUI components are integrated to form the complete GUI. Figure 1. shows the integration tree for WordPad. The nodes represent the GUI components of the GUI and the edges represents the invokes relation. A node of the integration tree consists of a MODAL GUI component and all of its child MODELESS GUI components.
